DM7836

quad NOR unified bus receiver

DM7836 Features

* Plug-i n replacement for SP380 gate

* Low I n put current with normal Vee or Vee = OV (15 pA typ)

* Built-in input hysteresIs (1 V typ)

* High nOise Immunity (2V typ)

* Temp

DM7836 General Description

The DM7836/DM8836 are quad 2-lnput receivers designed for use In bus organized data transmission systems interconnected by terminated 120Q impedance lines_ The external termination IS intended to be 180Q reSIStor from the bus to the +5V logic supply together with a 390Q resistor from the bus to grou.

DM7836 Datasheet (94.39 KB)

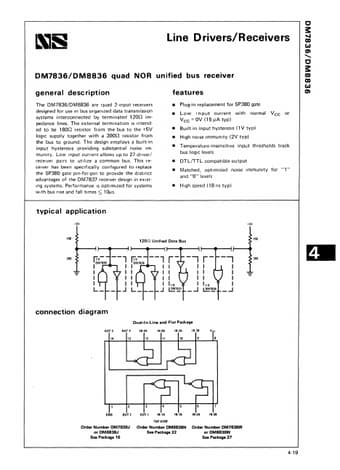

Preview of DM7836 PDF

Datasheet Details

Part number:

DM7836

Manufacturer:

National Semiconductor

File Size:

94.39 KB

Description:

Quad nor unified bus receiver.
