DM7831

Line Driver

DM7831 Features

* Series 54174 compatible

* 17 ns propagation delay

* Very low output impedance-high dril, capability

* 40 mA sink and source currents

* Gating control to allow either single-ended or differential operation

* High impedance output state which allows m

DM7831 General Description

c Through simple logic control, the DM7831/ DM8831, DM7832/DM8832 can be used as either a quad single-ended line driver or a dual differential line driver. They are specifically designed for party line (bus-organized) systems. The DM7832/ DM8832 does not have the Vee clamp diodes found on the.

DM7831 Datasheet (291.73 KB)

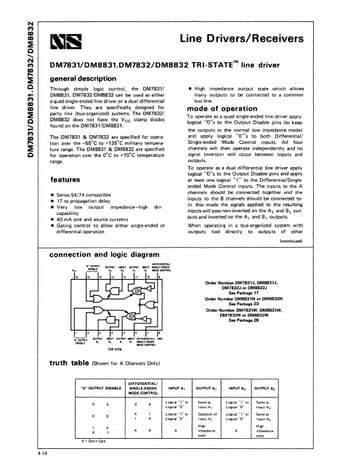

Preview of DM7831 PDF

Datasheet Details

Part number:

DM7831

Manufacturer:

National Semiconductor

File Size:

291.73 KB

Description:

Line driver.
