DM7837

hex unified bus receiver

DM7837 Features

* Low receiver Input current for normal V cc or Vee = OV (1511A typ)

* Six separate receivers per package

* Built-in receiver input hysteresis (lV typ)

* High receiver nOise immunity (2V typ)

* Temperature insensitive receiver Input th

DM7837 General Description

The DM7837/DM8837 are high speed receivers designed for use in bus organized data transmission systems Interconnected by terminated 120n Impedance lines. The external termination is intended to be 180[2 reSIStor from the bus to the +5V logic supply together with a 390[2 resistor from the bus to grou.

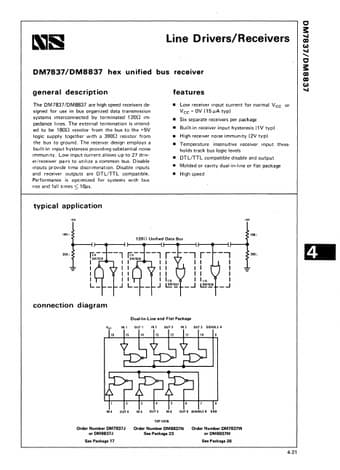

DM7837 Datasheet (108.72 KB)

Preview of DM7837 PDF

Datasheet Details

Part number:

DM7837

Manufacturer:

National Semiconductor

File Size:

108.72 KB

Description:

Hex unified bus receiver.
