DM8831 - Line Driver

National Semiconductor

The DM8831 by National Semiconductor is a Line Driver. Below is the official datasheet preview.

📥 Download Datasheet

DM8831 Line Driver by National Semiconductor - Datasheet Preview — Official preview page of the **DM8831** Line Driver datasheet (National Semiconductor).

Datasheet Details

Part number	DM8831
Manufacturer	National Semiconductor
File Size	290.89 KB
Description	Line Driver
Datasheet	DM8831-NationalSemiconductor.pdf

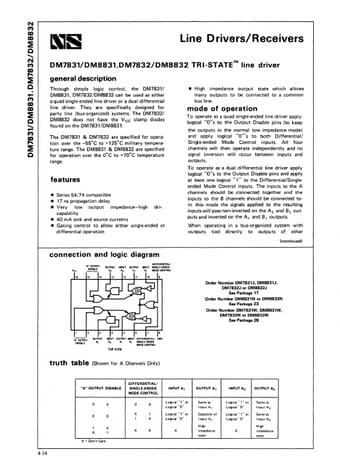

Additional preview pages of the DM8831 datasheet.

DM8831 Product details

Description

c Through simple logic control, the DM7831/ DM8831, DM7832/DM8832 can be used as either a quad single-ended line driver or a dual differential line driver.They are specifically designed for party line (bus-organized) systems.The DM7832/ DM8832 does not have the Vee clamp diodes found on the DM7831/DM8831. The DM7831 & DM7832 are specified for operation over the -55°C to +125°C military temperature range.The DM8831 & DM8832 are specified for operation over the O°C to +70°C temperature

Features

Series 54174 compatible.
17 ns propagation delay.
Very low output impedance-high dril, capability.
40 mA sink and source currents.
Gating control to allow either single-ended or differential operation.
High impedance output state which allows many outputs to be connected to a common bus line. mode of operation To operate as a q.
