DM8108

8 port 10/100M Fast Ethernet Switching Controller

Davicom

DM8108 Features

* T eight 10/100Mbps, auto-negotiated on-chip Fast Ethernet ports and a proprietary Full-duplex Expansion port. O Cascade max. 8 DM8108s without extra glue logic for 64-port configuration. T Incorporates three 802.3 compliant 10/100Mbps Media Access Controllers O Direct interface to MII (Media Indep

DM8108 General Description

The DM8108 is an 8 port 10/100Mbit/s nonblocking Ethernet switch with on-chip address-lookup engine. The DM8108 provides a low-cost, high-performance switch solution with PHYs and single SGRAM. The DM8108 provides eight 10/100Mbit/s Fast Ethernet interface. In half-duplex mode, all ports support bac.

DM8108 Datasheet (458.18 KB)

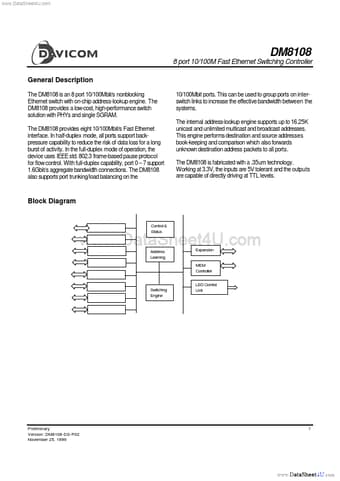

DM8108 Datasheet Preview — Preview of DM8108 PDF

Datasheet Details

Part number:

DM8108

Manufacturer:

Davicom

File Size:

458.18 KB

Description:

8 port 10/100m fast ethernet switching controller.
