DM81LS97A

(DM81LS95A - DM81LS97A) 3-STATE Octal Buffer

Fairchild Semiconductor

DM81LS97A Features

* s Typical power dissipation DM81LS95A, DM81LS97A DM81LS96A s Typical propagation delay DM81LS95A, DM81LS97A DM81LS96A 15 ns 10 ns 80 mW 65 mW s Low power-Schottky, 3-STATE technology Ordering Code: Order Number DM81LS95AN DM81LS96AN DM81LS97AN DM81LS95AWM DM81LS96AWM www.DataSheet4U.com Package N

DM81LS97A General Description

These devices provide eight, two-input buffers in each package. All employ low-power-Schottky TTL technology. One of the two inputs to each buffer is used as a control line to gate the output into the high-impedance state, while the other input passes the data through the buffer. The DM81LS95A and D.

DM81LS97A Datasheet (118.61 KB)

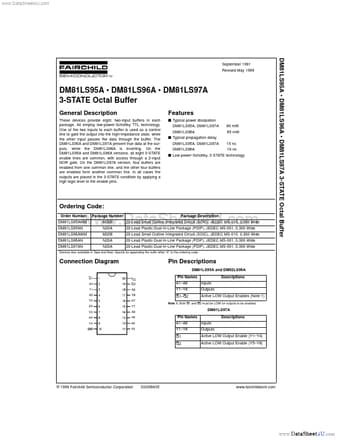

DM81LS97A Datasheet Preview — Preview of DM81LS97A PDF

Datasheet Details

Part number:

DM81LS97A

Manufacturer:

Fairchild Semiconductor

File Size:

118.61 KB

Description:

(dm81ls95a - dm81ls97a) 3-state octal buffer.
www.DataSheet4U.com DM81LS95A

* DM81LS96A

* DM81LS97A 3-STATE Octal Buffer September 1991 Revised May 1999 DM81LS95A

* DM81.
