DM81LS98A

(DM81LS95A - DM81LS98A) TRI-STATE Octal Buffer

National Semiconductor

DM81LS98A Features

* Y Y Y Y Octal versions of popular DM74365 366 367 and 368 (DM8095 96 97 and 98) Typical power dissipation LS465 467 (LS95A 97A) 80 mW LS466 468 (LS96A 98A) 65 mW Typical propagation delay LS465 467 (LS95A 97A) 15 ns LS466 468 (LS96A 98A) 10 ns Low power-Schottky TRI-STATE technology Connection D

DM81LS98A General Description

These devices provide eight two-input buffers in each package All employ the newest low-power-Schottky TTL technology One of the two inputs to each buffer is used as a control line to gate the output into the high-impedance state while the other input passes the data through the buffer The ’LS465 an.

DM81LS98A Datasheet (152.45 KB)

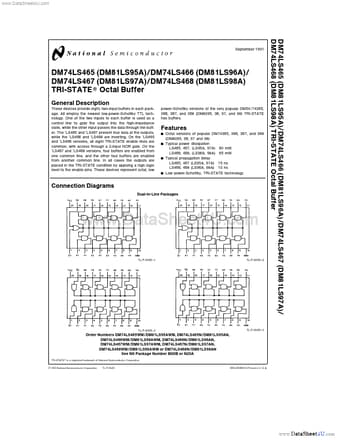

DM81LS98A Datasheet Preview — Preview of DM81LS98A PDF

Datasheet Details

Part number:

DM81LS98A

Manufacturer:

National Semiconductor

File Size:

152.45 KB

Description:

(dm81ls95a - dm81ls98a) tri-state octal buffer.
www.DataSheet4U.com DM74LS465 (DM81LS95A) DM74LS466 (DM81LS96A) DM74LS467 (DM81LS97A) DM74LS468 (DM81LS98A) TRI-STATE Octal Buffer September 1991 D.
