DP83223 - TWISTER High Speed Networking Transceiver Device

Datasheet Summary

Description

The DP83223 Twisted Pair Transceiver is an integrated circuit capable of driving and receiving three-level (MLT-3) encoded datastreams.

Features

  • s s s s s s s s s Compatible with ANSI X3.263 TP-PMD draft standard Allows use of Type 1 STP and Category 5 UTP cables Requires a single +5V supply Integrated transmitter and receiver with adaptive equalization circuit Isolated TX and RX power supplies for minimum noise coupling Loopback feature for board diagnostics Digitally Synthesized transmit signal transition time control for reduced EMI Programmable transmit voltage amplitude Suitable for 100BASE-TX Fast Ethernet and Twisted Pair FDDI app.

📥 Download Datasheet

Datasheet preview – DP83223

Datasheet Details

Part number DP83223
Manufacturer National Semiconductor
File Size 101.57 KB
Description TWISTER High Speed Networking Transceiver Device
Datasheet download datasheet DP83223 Datasheet
Additional preview pages of the DP83223 datasheet.

📁 Similar Datasheet

  • DP83016AUG - Falcon Switch 16-port Gigabit Ethernet Switch Engine (National)
  • DP8303 - 8 Bit Tri-State Bidirectional Transceiver (National)
  • DP8303 - (DP8304B) Octal 3 State Bidirectional Bus Transceiver (AMD)
  • DP8303A - 8 Bit Tri-State Bidirectional Transceiver (National)
  • DP8304B - 8-BIT TRI-STATE BIDIRECTIONAL TRANSCEIVER (National)
  • DP8307 - 8 Bit Tri-State Bidirectional Transceiver (National)
  • DP8307 - (DP8308) Octal 3 State Bidirectional Bus Transceiver (AMD)
  • DP8307A - 8 Bit Tri-State Bidirectional Transceiver (National)
  • DP8308 - 8-Bit TRI-STATE Bidirectional Transceiver (National)
  • DP83620 - Industrial Temperature Single Port 10/100 Mbps Ethernet Physical Layer Transceiver (Texas Instruments)
Other Datasheets by National Semiconductor
  • DP83220 - CDL Twisted Pair FDDI Transceiver Device
  • DP83222 - CYCLONE Twisted Pair FDDI Stream Cipher Device
  • DP83231 - CRD Device
  • DP83241 - CDD Device
  • DP83251 - (DP83251 / DP83255) PLAYER Device
  • DP83255 - (DP83251 / DP83255) PLAYER Device
  • DP83256 - (DP83256 / DP83257) PLAYER Device
  • DP83257 - (DP83256 / DP83257) PLAYER Device

Full PDF Text Transcription

Click to expand full text

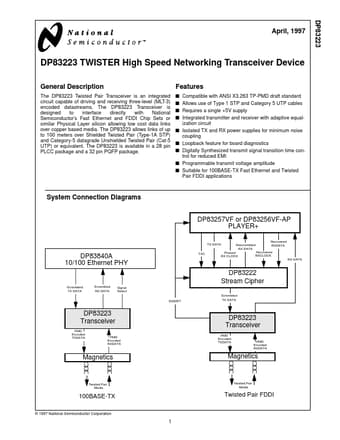

www.DataSheet4U.com DP83223 April, 1997 DP83223 TWISTER High Speed Networking Transceiver Device General Description The DP83223 Twisted Pair Transceiver is an integrated circuit capable of driving and receiving three-level (MLT-3) encoded datastreams. The DP83223 Transceiver is designed to interface directly with National Semiconductor’s Fast Ethernet and FDDI Chip Sets or similar Physical Layer silicon allowing low cost data links over copper based media. The DP83223 allows links of up to 100 meters over Shielded Twisted Pair (Type-1A STP) and Category-5 datagrade Unshielded Twisted Pair (Cat-5 UTP) or equivalent. The DP83223 is available in a 28 pin PLCC package and a 32 pin PQFP package. Features s s s s s s s s s Compatible with ANSI X3.
