DP8304B - 8-BIT TRI-STATE BIDIRECTIONAL TRANSCEIVER

Datasheet Summary

Description

The DP73048B DP8304B are high speed Schottky 8-bit TRI-STATE bidirectional transceivers designed to provide bidirectional drive for bus oriented microprocessor and digital communications systems They are all capable of sinking 16 mA on the A ports and 48 mA on the B ports (bus ports) PNP inputs for

Features

  • Y 8-bit bidirectional data flow reduces system package count Y Bidirectional TRI-ST.

📥 Download Datasheet

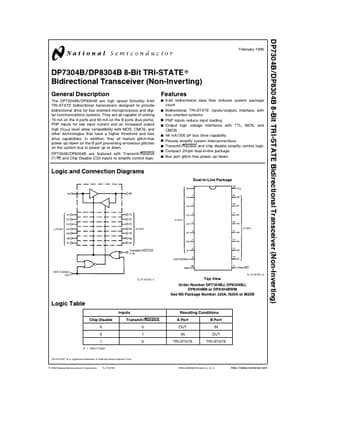

Datasheet preview – DP8304B

Datasheet Details

Part number DP8304B
Manufacturer National
File Size 110.45 KB
Description 8-BIT TRI-STATE BIDIRECTIONAL TRANSCEIVER
Datasheet download datasheet DP8304B Datasheet
Additional preview pages of the DP8304B datasheet.
