DP8390D

NIC Network Interface Controller

DP8390D Features

* Y Y Y Y Y Y Y Y Y Compatible with IEEE 802 3 Ethernet II Thin Ethernet StarLAN Interfaces with 8- 16- and 32-bit microprocessor systems Implements simple versatile buffer management Requires single 5V supply Utilizes low power microCMOS process Includes Two 16-bit DMA channels 16-byte internal F

DP8390D General Description

The DP8390D NS32490D Network Interface Controller (NIC) is a microCMOS VLSI device designed to ease interfacing with CSMA CD type local area networks including Ethernet Thin Ethernet (Cheapernet) and StarLAN The NIC implements all Media Access Control (MAC) layer functions for transmission and recep.

DP8390D Datasheet (1.05 MB)

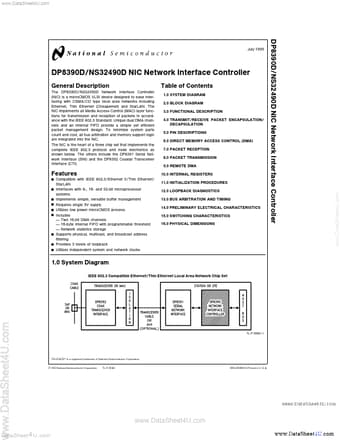

Preview of DP8390D PDF

Datasheet Details

Part number:

DP8390D

Manufacturer:

National Semiconductor

File Size:

1.05 MB

Description:

Nic network interface controller.
www.DataSheet4U.com DP8390D NS32490D NIC Network Interface Controller July 1995 DP8390D NS32490D NIC Network Interface Controller General Descripti.
