DP8392A

Coaxial Transceiver Interface

DP8392A Features

* Y Y Y Y Y Y Y Y Y Compatible with Ethernet II IEEE 802 3 10Base5 and 10Base2 (Cheapernet) Integrates all transceiver electronics except signal power isolation Innovative design minimizes external component count Jabber timer function integrated on chip Externally selectable CD Heartbeat allows

DP8392A General Description

The DP8392A Coaxial Transceiver Interface (CTI) is a coaxial cable line driver receiver for Ethernet Thin Ethernet (Cheapernet) type local area networks The CTI is connected between the coaxial cable and the Data Terminal Equipment (DTE) In Ethernet applications the transceiver is usually mounted wi.

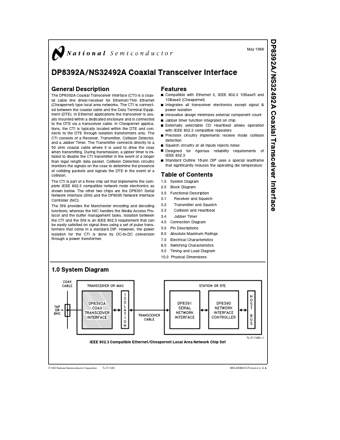

DP8392A Datasheet (172.87 KB)

Preview of DP8392A PDF

Datasheet Details

Part number:

DP8392A

Manufacturer:

National Semiconductor

File Size:

172.87 KB

Description:

Coaxial transceiver interface.
