DS3487 Quad TRI-STATE Line Driver

DS3487 Description

DS3487 Quad TRI-STATE Line Driver May 1998 DS3487 Quad TRI-STATE ® Line Driver General .
National’s quad RS-422 driver features four independent drivers which comply with EIA Standards for the electrical characteristics of balanced voltage.

DS3487 Features

* four independent drivers which comply with EIA Standards for the electrical characteristics of balanced voltage digital interface circuits. The outputs are TRI-STATE structures which are forced to a high impedance state when the appropriate output control pin reaches a logic zero condition. All inpu

📥 Download Datasheet

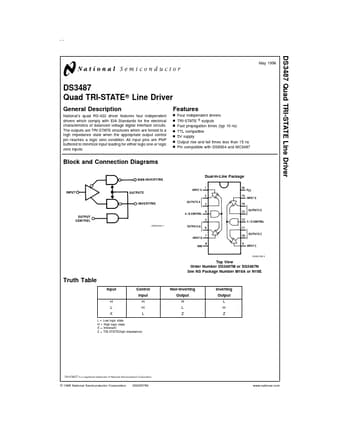

Preview of DS3487 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS3487
Manufacturer
National Semiconductor
File Size
157.97 KB
Datasheet
DS3487_NationalSemiconductor.pdf
Description
Quad TRI-STATE Line Driver
