DS3486MX, DS3486 Line Receiver

DS3486MX Description

DS3486 www.ti.com SNLS354D * MAY 1998 * REVISED APRIL 2013 DS3486 Quad RS-422, RS-423 Line Receiver Check for Samples: DS3486 FEAT.
Texas Instruments' quad RS-422, RS-423 receiver features four independent receivers which comply with EIA Standards for the electrical characteristics.

DS3486MX Features

* 1
* 2 Four Independent Receivers
* TRI-STATE Outputs
* Internal Hysteresis
* 140 mV (typ)
* Fast Propagation Times
* 19 ns (typ)
* TTL Compatible Outputs
* 5V Supply

DS3486MX Applications

* of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. All trademarks are the property of their respective owners. 2 PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DS3486MX, DS3486. Please refer to the document for exact specifications by model.

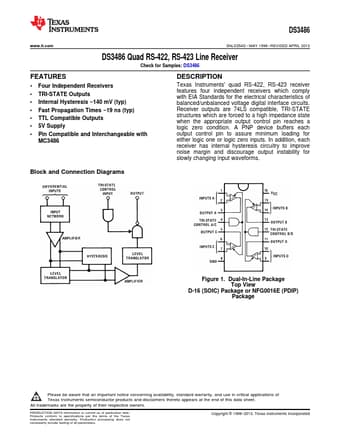

datasheet Preview Page 2 datasheet Preview Page 3
