(DS36149 / DS36179) Hex MOS Drivers

DS36179 Features

* Y Y Y High speed capabilities  Typ 9 ns driving 50 pF  Typ 29 ns driving 500 pF Built-in 15 X damping resistor (DS16149 DS36149) Same pin-out as DM8096 and DM74366 Schematic Diagram TL F 7553

* 1 C1995 National Semiconductor Corporation TL F 7553 RRD-B30M105 Printed in U S A Absolu

DS36179 General Description

The DS16149 DS36149 and DS16179 DS36179 are Hex MOS drivers with outputs designed to drive large capacitive loads up to 500 pF associated with MOS memory systems PNP input transistors are employed to reduce input currents allowing the large fan-out to these drivers needed in memory systems The circu.

DS36179 Datasheet (153.26 KB)

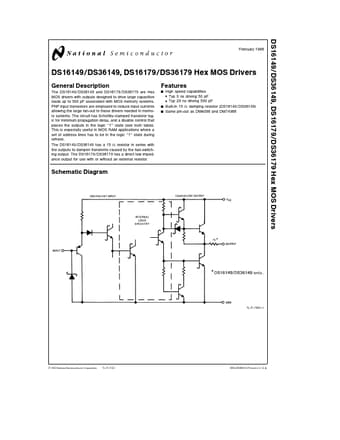

Preview of DS36179 PDF

Datasheet Details

Part number:

DS36179

Manufacturer:

National Semiconductor

File Size:

153.26 KB

Description:

(ds36149 / ds36179) hex mos drivers.
