DS36277 Datasheet - Texas Instruments

DS36277 Dominant Mode Multipoint Transceiver

The DS36277 Dominant Mode Multipoint Transceiver is designed for use on bi-directional differential busses. It is optimal for use on Interfaces that utilize Society of Automotive Engineers (SAE) J1708 Electrical Standard. The device is similar to standard TIA/EIA-485 transceivers, but differs in ena.

DS36277 Features

* 1

* 2 FAILSAFE Receiver, RO = HIGH for:

* OPEN Inputs

* Terminated Inputs

* SHORTED Inputs

* Optimal for Use in SAE J1708 Interfaces

* Compatible with Popular Interface Standards:

* TIA/EIA-485 and TIA/EIA-422-A

* CCITT Recommendation V.

DS36277 Datasheet (1.16 MB)

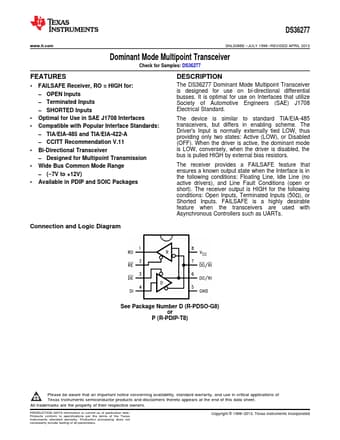

Preview of DS36277 PDF
DS36277 Datasheet Preview Page 2 DS36277 Datasheet Preview Page 3

Datasheet Details

Part number:

DS36277

Manufacturer:

Texas Instruments ↗

File Size:

1.16 MB

Description:

Dominant mode multipoint transceiver.
