DS3695A

Multipoint RS485/RS422 Transceivers

Texas Instruments

DS3695A Features

* 1

* 2 Meets EIA Standard RS485 for Multipoint Bus Transmission and is Compatible with RS-422

* 10 Ns Driver Propagation Delays (Typical)

* Single +5V Supply

* 7V to +12V Bus Common Mode Range Permits ±7V Ground Difference between Devices on the Bus

* T

DS3695A General Description

The DS3695A and DS3696A are high speed differential TRI-STATE bus/line transceivers designed to meet the requirements of EIA standard RS485 with extended common mode range (+12V to

*7V), for multipoint data transmission. In addition they are compatible with requirements of RS-422. The driver.

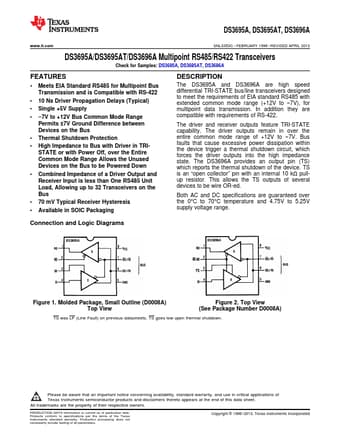

DS3695A Datasheet (0.97 MB)

DS3695A Datasheet Preview — Preview of DS3695A PDF

Datasheet Details

Part number:

DS3695A

Manufacturer:

Texas Instruments ↗

File Size:

0.97 MB

Description:

Multipoint rs485/rs422 transceivers.
DS3695A, DS3695AT, DS3696A www.ti.com SNLS353C

* FEBRUARY 1996

* REVISED APRIL 2013 DS3695A/DS3695AT/DS3696A Multipoint RS485/RS422.
