DS3692

TRI-STATE Differential Line Drivers

DS3692 Features

* n Short circuit protection for both source and sink outputs n 100Ω transmission line drive capability n Low ICC and IEE power consumption: Differential mode: ICC = 9 mA/driver typ, IEE = 5 mA/driver typ n Low current PNP inputs compatible with TTL, MOS and CMOS n Adaptable as MIL-STD-188-114A type 1

DS3692 General Description

The DS1692/DS3692 are low power Schottky TTL line drivers electrically similar to the DS1691A/DS3691 but tested to meet the requirements of MIL-STD-188-114A (see Application Note AN-216). MIL-STD-188-114A type 1 driver specifications can be met by adding an external three resistor voltage divider to.

DS3692 Datasheet (139.06 KB)

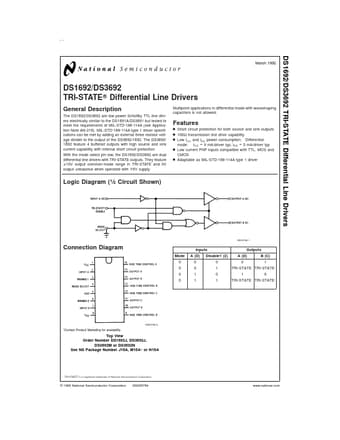

Preview of DS3692 PDF

Datasheet Details

Part number:

DS3692

Manufacturer:

National Semiconductor

File Size:

139.06 KB

Description:

Tri-state differential line drivers.
