DS36277 Datasheet - National Semiconductor

DS36277 Dominant Mode Multipoint Transceiver

The DS36277 Dominant Mode Multipoint Transceiver is designed for use on bi-directional differential busses. It is optimal for use on Interfaces that utilize Society of Automotive Engineers (SAE) J1708 Electrical Standard. The device is similar to standard TIA/EIA-485 transceivers, but differs in ena.

DS36277 Features

* n FAILSAFE receiver, RO = HIGH for:

* OPEN inputs

* Terminated inputs

* SHORTED inputs n Optimal for use in SAE J1708 Interfaces n Compatible with popular interface standards:

* TIA/EIA-485 and TIA/EIA-422-A

* CCITT recommendation V.11 n Bi-directional transce

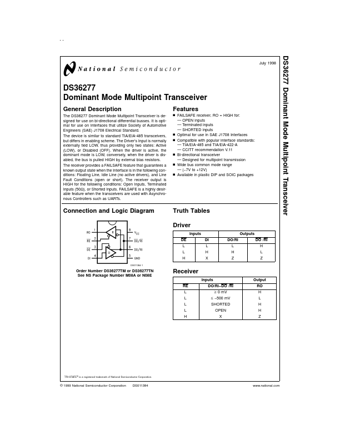

DS36277_NationalSemiconductor.pdf
