DS75176BT Multipoint RS-485/RS-422 Transceivers

National Semiconductor

Description

DS75176B/DS75176BT Multipoint RS-485/RS-422 Transceivers July 1998 DS75176B/DS75176BT Multipoint RS-485/RS-422 Transceivers General .
The DS75176B is a high speed differential TRI-STATE ® bus/line transceiver designed to meet the requirements of EIA standard RS485 with extended commo.

📥 Download Datasheet

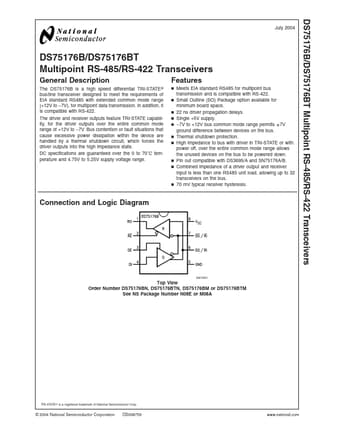

DS75176BT Datasheet Preview — Preview of DS75176BT PDF

Datasheet Specifications

Part number: DS75176BT
Manufacturer: National Semiconductor
File Size: 211.87 KB
Datasheet: DS75176BT_NationalSemiconductor.pdf
Description: Multipoint RS-485/RS-422 Transceivers

Features

* n Meets EIA standard RS485 for multipoint bus transmission and is compatible with RS-422. n Small Outline (SO) Package option available for minimum board space. n 22 ns driver propagation delays. n Single +5V supply. n
* 7V to +12V bus common mode range permits ± 7V ground difference between
