DS75450, DS7 Datasheet - National Semiconductor

DS75450 Series Dual Peripheral Drivers

The DS7545X series of dual peripheral drivers is a family of versatile devices designed for use in systems that use TTL logic. Typical applications include high speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, bus drivers and memory drivers. The DS75451, DS75452 and DS75.

DS75450 Features

* n n n n n n n n 300 mA output current capability High voltage outputs No output latch-up at 20V High speed switching Choice of logic function TTL compatible diode-clamped inputs Standard supply voltages Replaces TI “A” and “B” series Connection Diagrams (Dual-In-Line and Metal Can Packages) DS005

DS7-545.pdf

This datasheet PDF includes multiple part numbers: DS75450, DS7. Please refer to the document for exact specifications by model.

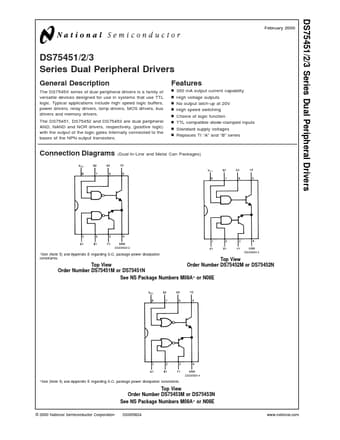

DS75450 Datasheet Preview Page 2 DS75450 Datasheet Preview Page 3

Datasheet Details

Part number:

DS75450, DS7

Manufacturer:

National Semiconductor

File Size:

278.28 KB

Description:

Series dual peripheral drivers.

Note:

This datasheet PDF includes multiple part numbers: DS75450, DS7.
Please refer to the document for exact specifications by model.
