DS75492

MOS-to-LED Digit Driver/ Quad Segment Driver

DS75492 Features

* Y Y Y Y Y 50 mA source or sink capability per driver (DS75491) 250 mA sink capability per driver (DS75492) MOS compatability (low input current) Low standby power High-gain Darlington circuits Schematic and Connection Diagrams DS75491 (each driver) DS75492 (each driver) TL F 5830

* 1 TL

DS75492 General Description

The DS75491 and DS75492 are interface circuits designed to be used in conjunction with MOS integrated circuits and common-cathode LEDs in serially addressed multi-digit displays The number of drivers required for this time-multiplexed system is minimized as a result of the segment-address-and-digit-.

DS75492 Datasheet (119.64 KB)

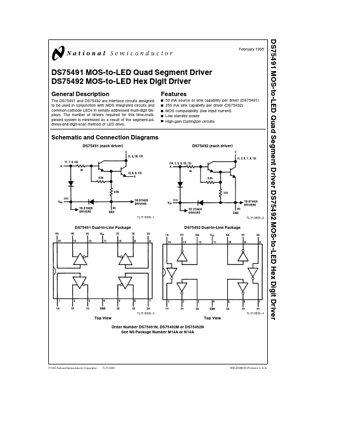

Preview of DS75492 PDF

Datasheet Details

Part number:

DS75492

Manufacturer:

National Semiconductor

File Size:

119.64 KB

Description:

Mos-to-led digit driver/ quad segment driver.
DS75491 MOS-to-LED Quad Segment Driver DS75492 MOS-to-LED Hex Digit Driver February 1995 DS75491 MOS-to-LED Quad Segment Driver DS75492 MOS-to-LED H.
