DS7820A

Dual Line Receiver

DS7820A Features

* n n n n n n n Operation from a single +5V logic supply Input voltage range of ± 15V Strobe low forces output to “1” state High input resistance Fanout of ten with TTL integrated circuits Outputs can be wire OR’ed Series 54/74 compatible Connection Diagram Dual-in-Line Package DS005797-2 Note 1: P

DS7820A General Description

The DS7820A and the DS8820A are improved performance digital line receivers with two completely independent units fabricated on a single silicon chip. Intended for use with digital systems connected by twisted pair lines, they have a differential input designed to reject large common mode signals wh.

DS7820A Datasheet (250.12 KB)

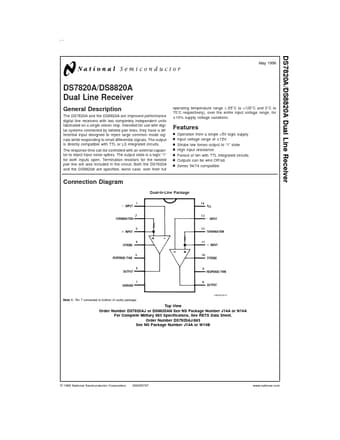

Preview of DS7820A PDF

Datasheet Details

Part number:

DS7820A

Manufacturer:

National Semiconductor

File Size:

250.12 KB

Description:

Dual line receiver.
