DS78LS120QML, DS78LS120 Datasheet - Texas Instruments

DS78LS120QML Dual Differential Line Receiver

The DS78LS120QML is a high performance, dual differential, TTL compatible line receiver for both balanced and unbalanced digital data transmission. The inputs are compatible with EIA, Federal and MIL standards. The line receiver will discriminate a ±200 mV input signal over a common-mode range of ±1.

DS78LS120QML Features

* 1

* 2 Meets EIA Standards RS232-C, RS422 and RS423, Federal Standards 1020, 1030 and MIL188-114

* Input Voltage Range of ±15V (Differential or Common-mode)

* Separate Strobe Input for Each Receiver

* 5k Typical Input Impedance

* Optional 180Ω Termination Resist

DS78LS120-etcTI.pdf

This datasheet PDF includes multiple part numbers: DS78LS120QML, DS78LS120. Please refer to the document for exact specifications by model.

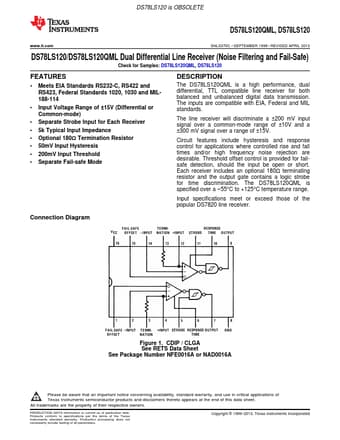

DS78LS120QML Datasheet Preview Page 2 DS78LS120QML Datasheet Preview Page 3

Datasheet Details

Part number:

DS78LS120QML, DS78LS120

Manufacturer:

Texas Instruments ↗

File Size:

516.25 KB

Description:

Dual differential line receiver.

Note:

This datasheet PDF includes multiple part numbers: DS78LS120QML, DS78LS120.
Please refer to the document for exact specifications by model.
