DS8800 Datasheet, Translator, National Semiconductor

DS8800 Features

  • Translator Y 31 volt (max) output swing Y 1 mW power dissipation in normal state Y Standard 5V power supply Y Temperature range DS7800 DS8800 b55 C to a125 C 0 C to a70 C Y Compatible with a

PDF File Details

Part number:

DS8800

Manufacturer:

National Semiconductor

File Size:

84.18kb

Download:

📄 Datasheet

Description:

Dual voltage level translator. The DS7800 DS8800 are dual voltage translators designed for interfacing between conventional TTL or LS voltage levels and those level

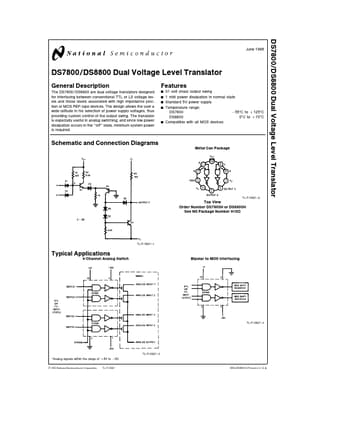

Datasheet Preview: DS8800 📥 Download PDF (84.18kb)
Page 2 of DS8800 Page 3 of DS8800

DS8800 Application

  • Applications 4-Channel Analog Switch TL F 5827
      – 1 Bipolar to MOS Interfacing Analog signals within the range of a8V to b8V C1995
