DS8830 - Dual Differential Line Driver

This page provides the datasheet information for the DS8830, a member of the DS8830J Dual Differential Line Driver family.

Datasheet Summary

Description

The DS7830/DS8830 is a dual differential line driver that also performs the dual four-input NAND or dual four-input AND function.

TTL (Transistor-Transistor-Logic) multiple emitter inputs allow this line driver to interface with standard TTL systems.

Features

  • n Single 5V power supply n Diode protected outputs for termination of positive and negative voltage transients n Diode protected inputs to prevent line ringing n High speed n Short circuit protection Connection Diagram Dual-In-Line and Flat Package DS005799-2 Top View Order Number DS8830.

📥 Download Datasheet

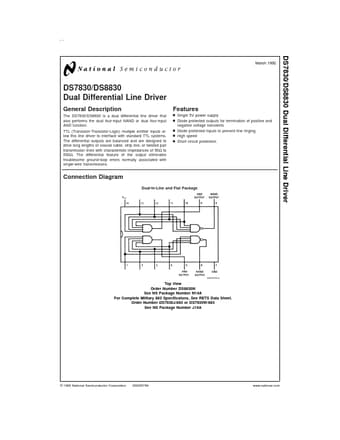

Datasheet preview – DS8830

Datasheet Details

Part number DS8830
Manufacturer National Semiconductor
File Size 181.98 KB
Description Dual Differential Line Driver
Datasheet download datasheet DS8830 Datasheet
Additional preview pages of the DS8830 datasheet.

📁 Similar Datasheet

  • DS8830 - DUAL DIFFERENTIAL LINE DRIVERS (Texas Instruments)
  • DS8836 - Quad NOR Unified Bus Receiver (National)
  • DS8839 - Quad Tri-State Bus Transceivers (National)
  • DS8813D - Multi-Phase PWM Controller (Richtek)
  • DS8816A - Dual-Phase PWM Controller (Richtek)
  • DS8817A - Dual-Phase PWM Controller (Richtek)
  • DS8005 - Smart Card Interface (Maxim Integrated Products)
  • DS8007 - multiprotocol dual smart card interface (Maxim Integrated Products)
  • DS8007A - Multiprotocol Dual Smart Card Interface (Maxim Integrated Products)
  • DS8023 - Smart Card Interface (Maxim Integrated Products)
Other Datasheets by National Semiconductor
  • DS8831 - Dual TRI-STATE Line Driver
  • DS8832 - Dual TRI-STATE Line Driver
  • DS8833 - Quad TRI-STATE Bus Transceivers
  • DS8834 - Quad TRI-STATE Bus Transceivers
  • DS8835 - Quad TRI-STATE Bus Transceivers
  • DS8837 - Hex Unified Bus Receiver
  • DS8838 - Quad Unified Bus Transceiver
  • DS8800 - Dual Voltage Level Translator

Full PDF Text Transcription

Click to expand full text
DS7830/DS8830 Dual Differential Line Driver March 1992 DS7830/DS8830 Dual Differential Line Driver General Description The DS7830/DS8830 is a dual differential line driver that also performs the dual four-input NAND or dual four-input AND function. TTL (Transistor-Transistor-Logic) multiple emitter inputs allow this line driver to interface with standard TTL systems. The differential outputs are balanced and are designed to drive long lengths of coaxial cable, strip line, or twisted pair transmission lines with characteristic impedances of 50Ω to 500Ω. The differential feature of the output eliminates troublesome ground-loop errors normally associated with single-wire transmissions.
