HPC16064 - (HPC16064 - HPC46064 / HPC16004 - HPC46004) High-Performance microController

Product Overview

National Semiconductor

Datasheet Details

Part number	HPC16064
Manufacturer	National Semiconductor
File Size	487.80 KB
Description	(HPC16064 - HPC46064 / HPC16004 - HPC46004) High-Performance microController
Datasheet	HPC16064 Datasheet
Note	This datasheet PDF includes multiple part numbers: HPC16064, HPC46064. Please refer to the document for exact specifications by model.

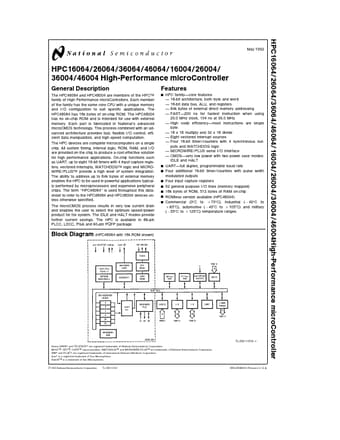

Additional preview pages of the HPC16064 datasheet.

Product details

Description

The HPC46064 and HPC46004 are members of the HPCTM family of High Performance microControllers Each member of the family has the same core CPU with a unique memory and I O configuration to suit specific applications The HPC46064 has 16k bytes of on-chip ROM The HPC46004 has no on-chip ROM and is intended for use with external memory Each part is fabricated in National’s advanced microCMOS technology This process combined with an advanced architecture provides fast flexible I O control efficient

Features

Y Y Y Y Y Y Y Y HPC family core features 16-bit architecture both byte and word 16-bit data bus ALU and registers 64k bytes of external direct memory addressing FAST 200 ns for fastest instruction when using 20 0 MHz clock 134 ns at 30 0 MHz High code efficiency most instructions are single byte 16 x 16 multiply and 32 x 16 divide Eight vectored interrupt sources Four 16-bit timer counters with 4 synchronous outputs and.
