HPC26004 Datasheet - National Semiconductor

HPC26004 (HPC16064 - HPC46064 / HPC16004 - HPC46004) High-Performance microController

The HPC46064 and HPC46004 are members of the HPCTM family of High Performance microControllers Each member of the family has the same core CPU with a unique memory and I O configuration to suit specific applications The HPC46064 has 16k bytes of on-chip ROM The HPC46004 has no on-chip ROM and is int.

HPC26004 Features

* Y Y Y Y Y Y Y Y HPC family core features 16-bit architecture both byte and word 16-bit data bus ALU and registers 64k bytes of external direct memory addressing FAST 200 ns for fastest instruction when using 20 0 MHz clock 134 ns at 30 0 MHz High code efficiency most instructions are single byte

HPC26004 Datasheet (487.80 KB)

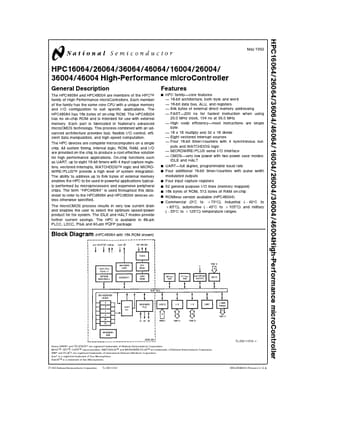

Preview of HPC26004 PDF
HPC26004 Datasheet Preview Page 2 HPC26004 Datasheet Preview Page 3

Datasheet Details

Part number:

HPC26004

Manufacturer:

National Semiconductor

File Size:

487.80 KB

Description:

(hpc16064 - hpc46064 / hpc16004 - hpc46004) high-performance microcontroller.
