INS1671

Asynchronous/Synchronous Transmitter/Receiver

National Semiconductor

INS1671 Features

* Synchronous and Asynchronous Full Duplex Operations

* Synchronous Mode Capabilities - Selectable 5- to 8-Bit C'haracters - T.wo Contiguous SYN Characters Provide Synchronization Programmable SYN and DLE Characters Stripping Programmable SYN and SYN-DLE Characters Insertion

INS1671 General Description

The INS1671 is a programmable Asynchronous/Synchronous Transmitter/Receiver (ASTRa) chip housed' in a standard, 40-pin dual-in-line package. The chip, which is fabricated using N-channel silicon gate MaS technology, provides a serial data input/output interface in a busstructured system. The chip is.

INS1671 Datasheet (1.15 MB)

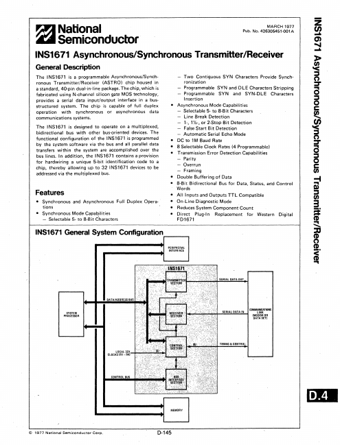

INS1671 Datasheet Preview — Preview of INS1671 PDF

Datasheet Details

Part number:

INS1671

Manufacturer:

National Semiconductor

File Size:

1.15 MB

Description:

Asynchronous/synchronous transmitter/receiver.
