INS1771-1 Floppy Disk Formatter/Controller

National Semiconductor

Description

~National ~ Semiconductor SEPTEMBER 1978 Pub.No.426305468'()Ol INS1771-1 Floppy Disk Formatter/Controller General .
The INS1771-1 is a programmable floppy disk formatter/ controller chip contained in a standard 40'pin dual-in. line package.

📥 Download Datasheet

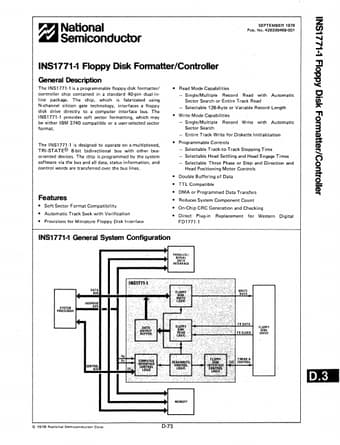

INS1771-1 Datasheet Preview — Preview of INS1771-1 PDF

Datasheet Specifications

Part number: INS1771-1
Manufacturer: National Semiconductor
File Size: 1.50 MB
Datasheet: INS1771-1-NationalSemiconductor.pdf
Description: Floppy Disk Formatter/Controller

Features

* Soft Sector Format Compatibility
* Automatic Track Seek with Verification
* Provisions for Miniature Floppy Disk Interface
* Read Mode Capabil ities Single/Multiple Record Read with Automatic Sector Search or Entire Track Read Selectable 128-8yte or Variable Record
