INS8202 Datasheet - National Semiconductor

INS8202 - Octal Buffers

These devices provide eight two-input buffers in each package.

All employ the newest low power Schottky TTL technology.

One of the two inputs to each buffer is used as a control line to gate the output into the high-impedance state, while the other input passes the data through the buffer.

The INS82

INS8202 Features

* Identical to DM81 LS95 and DM81LS96

* Octal versions of popular DM80LS95, 80LS96

* Typical power dissipation INS8202 - 80mW INS8203 - 65mW

* Typical propagation delay INS8202 - 13ns INS8203 - 10ns

* Low power Schottky TRI-STATE technology

* MICROBUST

INS8202-NationalSemiconductor.pdf

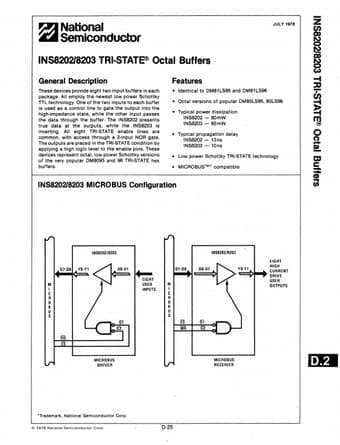

Preview of INS8202 PDF
INS8202 Datasheet Preview Page 2 INS8202 Datasheet Preview Page 3

Datasheet Details

Part number:

INS8202

Manufacturer:

National Semiconductor

File Size:

240.01 KB

Description:

Octal buffers.
