INS8203

Octal Buffers

National Semiconductor

INS8203 Features

* Identical to DM81 LS95 and DM81LS96

* Octal versions of popular DM80LS95, 80LS96

* Typical power dissipation INS8202 - 80mW INS8203 - 65mW

* Typical propagation delay INS8202 - 13ns INS8203 - 10ns

* Low power Schottky TRI-STATE technology

* MICROBUST

INS8203 General Description

These devices provide eight two-input buffers in each package. All employ the newest low power Schottky TTL technology. One of the two inputs to each buffer is used as a control line to gate the output into the high-impedance state, while the other input passes the data through the buffer. The INS82.

INS8203 Datasheet (240.01 KB)

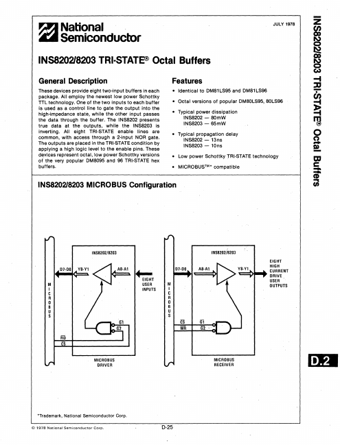

INS8203 Datasheet Preview — Preview of INS8203 PDF

Datasheet Details

Part number:

INS8203

Manufacturer:

National Semiconductor

File Size:

240.01 KB

Description:

Octal buffers.
