LH0004C

High Voltage Operational Amplifier

LH0004C Features

* Y Capable of operation over the range of g5V to g40V Y Large output voltage typically g35V for the LH0004 and g33V for the LH0004C into a 2 kX load with g40V supplies Y Low input offset voltage typically 0 3 mV Y Frequency compensation with 2 small capacitors Y Low power consumption 8 mW at g40V Ap

LH0004C General Description

The LH0004 is a general purpose operational amplifier designed to operate from supply voltages up to g40V The device dissipates extremely low quiescent power typically 8 mW at 25 C and VS e g40V The LH0004’s high gain and wide range of operating voltages make it ideal for applications requiring larg.

LH0004C Datasheet (128.21 KB)

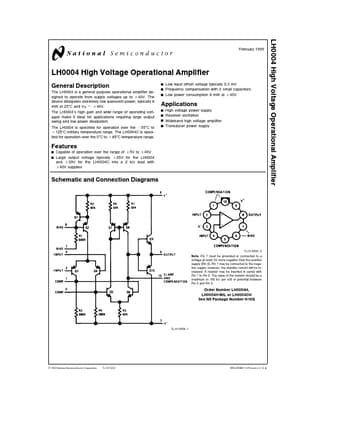

Preview of LH0004C PDF

Datasheet Details

Part number:

LH0004C

Manufacturer:

National Semiconductor

File Size:

128.21 KB

Description:

High voltage operational amplifier.
