LH0005A, LH0005 - Operational Amplifier

LH0005A Description

~National ~ Semiconductor LH0005/LH0005A Operational Amplifier General .
The LH0005/LH0005A is a hybrid integrated circuit operational amplifier employing thick film resistors and discrete silicon semiconductors in its des.

LH0005A Features

* Very high output current capability: ±50 mA into a 100 ohm load
* Low standby power dissipation: typically 60 mW at ±12V
* High input resistance: typically 2M at 25°C Schematic and Connection Diagrams INPUT FREQUENCY COMPENSATION 10 OUTPUT FREQUENCY COMPENSATION 9

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LH0005A, LH0005. Please refer to the document for exact specifications by model.

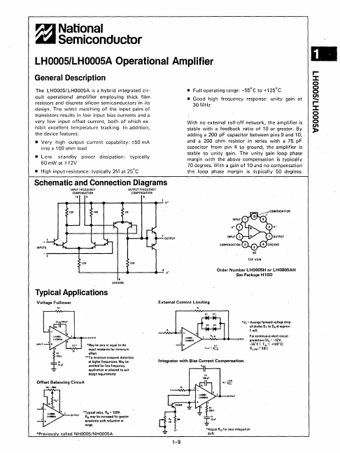

datasheet Preview Page 2 datasheet Preview Page 3
