LH0032C

Ultra Fast FET Operational Amplifier

National Semiconductor

LH0032C Features

* 500 V/J.lS slew rate

* 70 MHz bandwidth

* 1012Q input impedance

* 5 mV max. input offset voltage

* FET input

* Offset null with single pot

* No compensation for gains above 50

* Peak output current to 100 mA The LH0032's wide bandwid

LH0032C General Description

The LH0032/LH0032C is a high slew rate, high input impedance differential operational amplifier suitable for diverse application in fast signal handling. The high allowable differential input voltage, ease of output clampIng, and high output drive capability particularly suit it for comparator appli.

LH0032C Datasheet (248.49 KB)

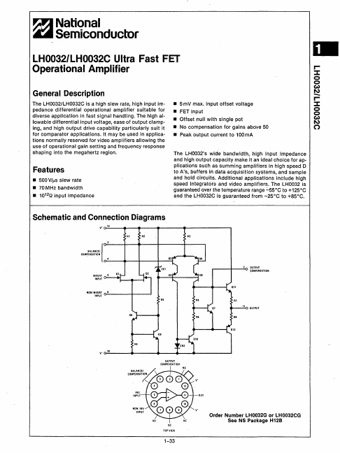

LH0032C Datasheet Preview — Preview of LH0032C PDF

Datasheet Details

Part number:

LH0032C

Manufacturer:

National Semiconductor

File Size:

248.49 KB

Description:

Ultra fast fet operational amplifier.
