LM140JAN

Three Terminal Positive Regulators

LM140JAN Features

* n n n n n Complete specifications at 0.5A and 1.0A loads No external components Internal thermal overload protection Internal short circuit current-limiting Output transistor safe-area compensation Ordering Information NS Part Number JL140-5BXA JL140-5BYA JL140-5SXA JL140-5SYA JL140-12BXA JL140-12B

LM140JAN General Description

The monolithic 3-terminal positive voltage regulators employ internal current-limiting, thermal shutdown and safe-area compensation, making them essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5A and 1.0A output current. They are intended as fixed voltage re.

LM140JAN Datasheet (561.72 KB)

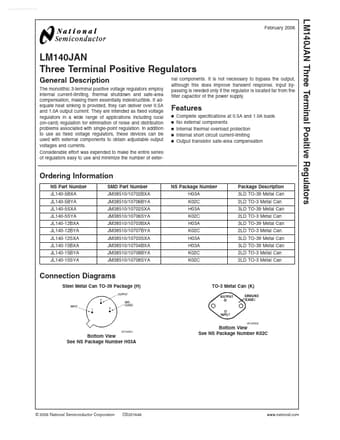

Preview of LM140JAN PDF

Datasheet Details

Part number:

LM140JAN

Manufacturer:

National Semiconductor

File Size:

561.72 KB

Description:

Three terminal positive regulators.
