LM146

Programmable Quad Operational Amplifiers

LM146 Features

* 1

* 2 (ISET=10 μA)

* Programmable Electrical Characteristics

* Battery-Powered Operation

* Low Supply Current: 350 μA/Amplifier

* Ensured Gain Bandwidth Product: 0.8 MHz Min

* Large DC Voltage Gain: 120 dB

* Low Noise Voltage: 28 nV/√Hz

LM146 General Description

The LM146 series of quad op amps consists of four independent, high gain, internally compensated, low power, programmable amplifiers. Two external resistors (RSET) allow the user to program the gain bandwidth product, slew rate, supply current, input bias current, input offset current and input nois.

LM146 Datasheet (1.66 MB)

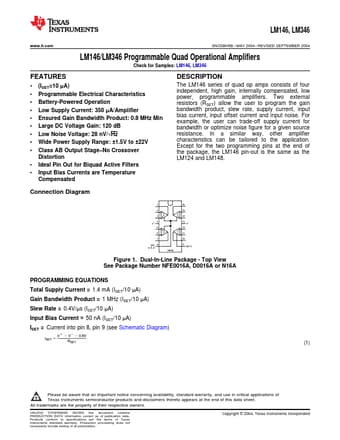

Preview of LM146 PDF

Datasheet Details

Part number:

LM146

Manufacturer:

Texas Instruments ↗

File Size:

1.66 MB

Description:

Programmable quad operational amplifiers.
LM146, LM346 www.ti.com SNOSBH5B

* MAY 2004

* REVISED SEPTEMBER 2004 LM146/LM346 Programmable Quad Operational Amplifiers Check for.
