LM146

Programmable Quad Operational Amplifiers

National Semiconductor

LM146 Features

* (ISET=10 µA) n Programmable electrical characteristics n Battery-powered operation n Low supply current: 350 µA/amplifier n Guaranteed gain bandwidth product: 0.8 MHz min n Large DC voltage gain: 120 dB n Low noise voltage: 28 n Wide power supply range: ±1.5V to ±22V n Class AB output stage

LM146 General Description

The LM146 series of quad op amps consists of four independent, high gain, internally compensated, low power, programmable amplifiers. Two external resistors (RSET) allow the user to program the gain bandwidth product, slew rate, supply current, input bias current, input offset current and input nois.

LM146 Datasheet (637.58 KB)

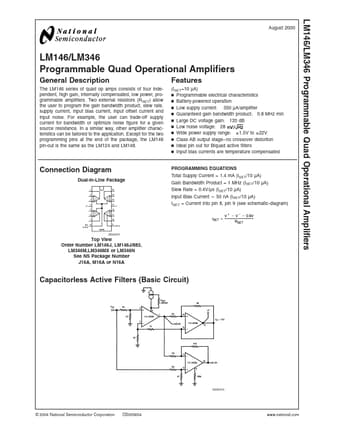

LM146 Datasheet Preview — Preview of LM146 PDF

Datasheet Details

Part number:

LM146

Manufacturer:

National Semiconductor

File Size:

637.58 KB

Description:

Programmable quad operational amplifiers.
