LM195

Ultra Reliable Power Transistors

National Semiconductor

LM195 Features

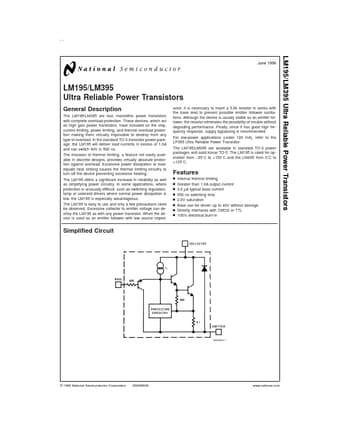

* n n n n n n n n Internal thermal limiting Greater than 1.0A output current 3.0 µA typical base current 500 ns switching time 2.0V saturation Base can be driven up to 40V without damage Directly interfaces with CMOS or TTL 100% electrical burn-in Simplified Circuit DS006009-1 © 1999 National Semic

LM195 General Description

The LM195/LM395 are fast, monolithic power transistors with complete overload protection. These devices, which act as high gain power transistors, have included on the chip, current limiting, power limiting, and thermal overload protection making them virtually impossible to destroy from any type of.
