LM1950

750mA High Side Switch

LM1950 Features

* include short circuit protection thermal shutdown over-voltage shutdown to protect load circuits and protection against reverse polarity input connections The LM1950 is available in a 5-lead power TO-220 package and specified over a wide b40 C to 125 C operating temperature range Features Y 750 mA

LM1950 General Description

The LM1950 is a high current high side (PNP) power switch for driving ground referenced loads Intended for industrial and automotive applications the LM1950 is guaranteed to deliver 750 mA continuous load current (with typically 1 4 Amps peak) and can withstand supply voltage transients up to a60V a.

LM1950 Datasheet (147.80 KB)

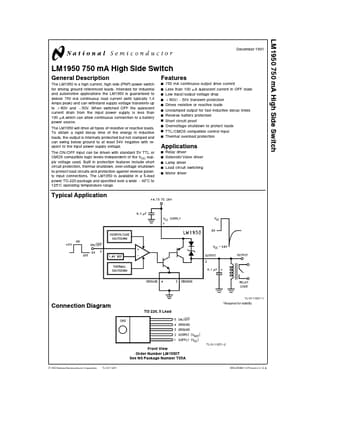

Preview of LM1950 PDF

Datasheet Details

Part number:

LM1950

Manufacturer:

National Semiconductor

File Size:

147.80 KB

Description:

750ma high side switch.
