LM231

Precision Voltage-to-Frequency Converters

LM231 Features

* n Guaranteed linearity 0.01% max n Improved performance in existing voltage-to-frequency conversion applications n Split or single supply operation n Operates on single 5V supply n Pulse output compatible with all logic forms n Excellent temperature stability, ± 50 ppm/˚C max n Low power dissipation

LM231 General Description

The LM231/LM331 family of voltage-to-frequency converters are ideally suited for use in simple low-cost circuits for analog-to-digital conversion, precision frequency-to-voltage conversion, long-term integration, linear frequency modulation or demodulation, and many other functions. The output when .

LM231 Datasheet (368.44 KB)

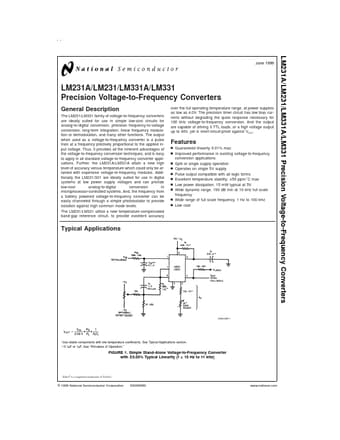

Preview of LM231 PDF

Datasheet Details

Part number:

LM231

Manufacturer:

National Semiconductor

File Size:

368.44 KB

Description:

Precision voltage-to-frequency converters.
LM231A/LM231/LM331A/LM331 Precision Voltage-to-Frequency Converters June 1999 LM231A/LM231/LM331A/LM331 Precision Voltage-to-Frequency Converters Ge.
