LM231A Datasheet - National Semiconductor

LM231A_NationalSemiconductor.pdf

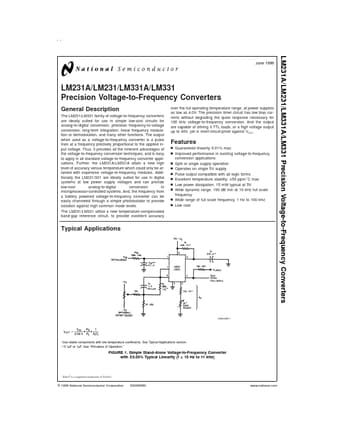

Preview of LM231A PDF
LM231A Datasheet Preview Page 2 LM231A Datasheet Preview Page 3

Datasheet Details

Part number:

LM231A

Manufacturer:

National Semiconductor

File Size:

368.44 KB

Description:

Precision voltage-to-frequency converters.

LM231A, Precision Voltage-to-Frequency Converters

The LM231/LM331 family of voltage-to-frequency converters are ideally suited for use in simple low-cost circuits for analog-to-digital conversion, precision frequency-to-voltage conversion, long-term integration, linear frequency modulation or demodulation, and many other functions.

The output when

LM231A Features

* n Guaranteed linearity 0.01% max n Improved performance in existing voltage-to-frequency conversion applications n Split or single supply operation n Operates on single 5V supply n Pulse output compatible with all logic forms n Excellent temperature stability, ± 50 ppm/˚C max n Low power dissipation
