LM2421 - Monolithic Triple Channel HDTV Driver

Datasheet Summary

Description

The LM2421 is an integrated high voltage CRT driver circuit designed for use in HDTV applications.

The IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT.

42 and can drive CRT capacitive loa

Features

  • n 0V to 5V input range n Stable with 0.
  • 20 pF capacitive loads and inductive peaking networks n Convenient TO-220 staggered lead package style n Maintains standard LM240X Family pinout which is designed for easy PCB layout.

📥 Download Datasheet

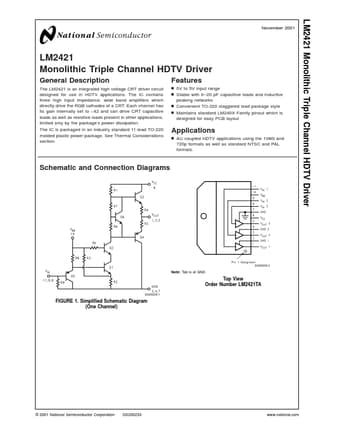

Datasheet preview – LM2421

Datasheet Details

Part number LM2421
Manufacturer National Semiconductor
File Size 0.97 MB
Description Monolithic Triple Channel HDTV Driver
Datasheet download datasheet LM2421 Datasheet
Additional preview pages of the LM2421 datasheet.

📁 Similar Datasheet

  • LM2422 - LM2422 220V Monolithic Triple Channel 30 MHz CRT DTV Driver (Rev. C) (ETCTI)
  • LM2422TE - 220V Monolithic Triple Channel 30MHz CRT DTV Driver (Texas Instruments)
  • LM2429 - Monolithic Triple Channel 15MHz DTV Driver (Texas Instruments)
  • LM24010J - Display Module (Sharp)
  • LM24010Z - LCD Dot Matrix Unit (Sharp)
  • LM240120BCW - LCD Module User Manual (TOPWAY)
  • LM240120BFW - LCD Module User Manual (TOPWAY)
  • LM240120BFW-1 - LCD Module User Manual (TOPWAY)
  • LM240120DCW - LCD Module User Manual (TOPWAY)
  • LM240120DCW-1 - LCD Module User Manual (TOPWAY)
Other Datasheets by National Semiconductor
  • LM2422 - 220V Monolithic Triple Channel 30MHz CRT DTV Driver
  • LM2422TE - 220V Monolithic Triple Channel 30MHz CRT DTV Driver
  • LM2423 - 220V Monolithic Triple Channel 15 MHz CRT DTV Driver
  • LM2423TE - 220V Monolithic Triple Channel 15 MHz CRT DTV Driver
  • LM2425 - 220V Monolithic Triple Channel 10 MHz CRT DTV Driver
  • LM2425TE - 220V Monolithic Triple Channel 10 MHz CRT DTV Driver
  • LM2426 - Monolithic Triple Channel 30 MHz DTV Driver
  • LM2426TE - Monolithic Triple Channel 30 MHz DTV Driver

Full PDF Text Transcription

Click to expand full text
LM2421 Monolithic Triple Channel HDTV Driver November 2001 LM2421 Monolithic Triple Channel HDTV Driver General Description The LM2421 is an integrated high voltage CRT driver circuit designed for use in HDTV applications. The IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to −42 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation. The IC is packaged in an industry standard 11-lead TO-220 molded plastic power package. See Thermal Considerations section.
