LM2423 Datasheet PDF - National Semiconductor 220V Monolithic Triple Channel 15 MHz CRT DTV Driver Specs

LM2423 - 220V Monolithic Triple Channel 15 MHz CRT DTV Driver

Datasheet Summary

Description

The LM2423 is a triple channel high voltage CRT driver circuit designed for use in DTV applications.

The IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT.

54 and can drive CRT capacitive l

Features

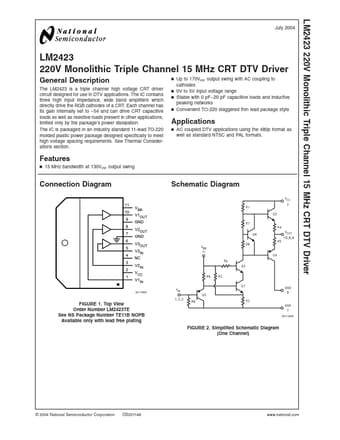

n 15 MHz bandwidth at 130VPP output swing Connection Diagram Schematic Diagram 20114801 FIGURE 1. Top View Order Number LM2423TE See NS Package Number TE11B NOPB Available only with lead free plating FIGURE 2. Simplified Schematic Diagram (One Channel) 20114802 © 2004 National Semiconductor Corporation DS201148 www. national. com LM2423 Absolute Maximum Ratings 3) (Notes 1, Operating Ratings (Note 2) VCC VBB VIN VOUT Case Temperature Do not operate the part without a heat sink. +100V t.

Datasheet Details

Part number	LM2423
Manufacturer	National Semiconductor
File Size	733.24 KB
Description	220V Monolithic Triple Channel 15 MHz CRT DTV Driver
Datasheet	LM2423 Datasheet
Additional preview pages of the LM2423 datasheet.

📁 Similar Datasheet

LM2422 - LM2422 220V Monolithic Triple Channel 30 MHz CRT DTV Driver (Rev. C) (ETCTI)

LM2422TE - 220V Monolithic Triple Channel 30MHz CRT DTV Driver (Texas Instruments)

LM2429 - Monolithic Triple Channel 15MHz DTV Driver (Texas Instruments)

LM24010J - Display Module (Sharp)

LM24010Z - LCD Dot Matrix Unit (Sharp)

LM240120BCW - LCD Module User Manual (TOPWAY)

LM240120BFW - LCD Module User Manual (TOPWAY)

LM240120BFW-1 - LCD Module User Manual (TOPWAY)

LM240120DCW - LCD Module User Manual (TOPWAY)

LM240120DCW-1 - LCD Module User Manual (TOPWAY)

Full PDF Text Transcription

Click to expand full text

LM2423 220V Monolithic Triple Channel 15 MHz CRT DTV Driver July 2004 LM2423 220V Monolithic Triple Channel 15 MHz CRT DTV Driver General Description The LM2423 is a triple channel high voltage CRT driver circuit designed for use in DTV applications. The IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to −54 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation. The IC is packaged in an industry standard 11-lead TO-220 molded plastic power package designed specifically to meet high voltage spacing requirements. See Thermal Considerations section.
