LM2467 - Monolithic Triple 7.5 ns CRT Driver

Product Overview

National Semiconductor

Datasheet Details

Part number	LM2467
Manufacturer	National Semiconductor
File Size	449.29 KB
Description	Monolithic Triple 7.5 ns CRT Driver
Datasheet	LM2467 Datasheet
Additional preview pages of the LM2467 datasheet.

Product details

Description

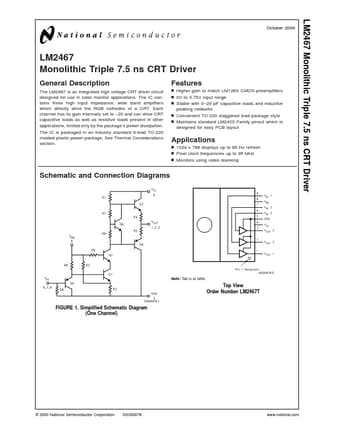

The LM2467 is an integrated high voltage CRT driver circuit designed for use in color monitor applications. 20 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation.

Features

n Higher gain to match LM126X CMOS preamplifiers n 0V to 3.75V input range n Stable with 0.
20 pF capacitive loads and inductive peaking networks n Convenient TO-220 staggered lead package style n Maintains standard LM243X Family pinout which is designed for easy PCB layout.
