LM2479 - 120V Triple Bias Clamp

Product Overview

National Semiconductor

Part number	LM2479
Manufacturer	National Semiconductor
File Size	78.70 KB
Description	120V Triple Bias Clamp
Datasheet	LM2479 Datasheet

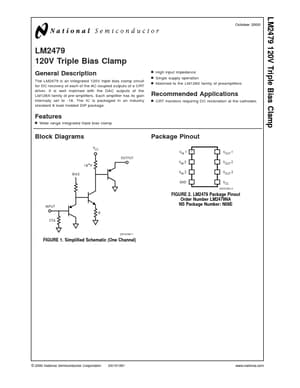

Additional preview pages of the LM2479 datasheet.

The LM2479 is an Integrated 120V triple bias clamp circuit for DC recovery of each of the AC coupled outputs of a CRT driver.

n Wide range integrated triple bias clamp Block Diagrams Package Pinout DS101391-2 FIGURE 2. LM2479 Package Pinout Order Number LM2479NA NS Package Number: N08E DS101391-1 FIGURE 1. Simplified Schematic (One Channel) © 2000 National Semiconductor Corporation DS101391 www. national. com LM2479 Absolute Maximum Ratings (Note 1) If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications. Sup.
