LM2479NA

120V Triple Bias Clamp

LM2479NA Features

* n Wide range integrated triple bias clamp Block Diagrams Package Pinout DS101391-2 FIGURE 2. LM2479 Package Pinout Order Number LM2479NA NS Package Number: N08E DS101391-1 FIGURE 1. Simplified Schematic (One Channel) © 2000 National Semiconductor Corporation DS101391 www.national.com LM247

LM2479NA General Description

The LM2479 is an Integrated 120V triple bias clamp circuit for DC recovery of each of the AC coupled outputs of a CRT driver. It is well matched with the DAC outputs of the LM126X family of pre-amplifiers. Each amplifier has its gain internally set to -18. The IC is packaged in an industry standard .

LM2479NA Datasheet (78.70 KB)

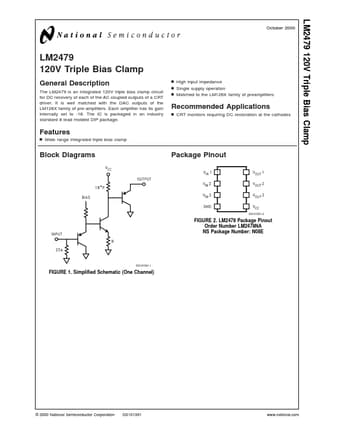

Preview of LM2479NA PDF

Datasheet Details

Part number:

LM2479NA

Manufacturer:

National Semiconductor

File Size:

78.70 KB

Description:

120v triple bias clamp.
