LM2773 - Low-Ripple 1.8V/1.6V Spread-Spectrum Switched Capacitor Step-Down Regulator

Description

The LM2773 is a switched capacitor step-down regulator that produces a selectable 1.8V or 1.6V output.

It is capable of supplying loads up to 300mA.

The LM2773 operates with an input voltage from 2.5V to 5.5V, accommodating 1-cell Li-Ion batteries and chargers.

Features

  • Low-Noise Spread Spectrum Operation 1.8V/1.6V Selectable Output Voltage 2% Output Voltage Regulation > 75% Efficiency in 1.8V Mode Very Low Output Ripple: 10mV @ 300mA Output Currents up to 300mA 2.5V to 5.5V Input Voltage Range Shutdown Disconnects Load from VIN 1.15MHz Switching Frequency No Inductors…Small Solution Size Short Circuit and Thermal Protection 0.5mm pitch, µSMD-9 (1.511 × 1.511mm × 0.6mm).

📥 Download Datasheet

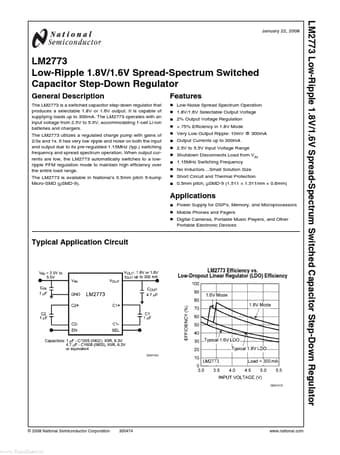

Datasheet preview – LM2773

📁 Similar Datasheet

  • LM2773 - Step-Down Regulator (Texas Instruments)
  • LM2770 - Step-Down DC/DC Regulator (Texas Instruments)
  • LM2771 - Step-Down DC/DC Converter (Texas Instruments)
  • LM2772 - Step-Down Regulator (Texas Instruments)
  • LM2775 - Switched Capacitor 5-V Boost Converter (Texas Instruments)
  • LM2775-Q1 - Switched Capacitor 5-V Boost Converter (Texas Instruments)
  • LM2776 - Switched Capacitor Inverter (Texas Instruments)
  • LM27761 - Switched-Capacitor Voltage Inverter (Texas Instruments)
  • LM27762 - Low-Noise Positive and Negative Output Integrated Charge Pump Plus LDO (Texas Instruments)
  • LM27 - Factory Preset Thermostat (Texas Instruments)
Other Datasheets by National Semiconductor
  • LM2770 - High Efficiency Switched Capacitor Step-Down DC/DC Regulator
  • LM2771 - Low-Ripple 250mA Switched Capacitor Step-Down DC/DC Converter
  • LM2772 - Low-Ripple Switched Capacitor Step-Down Regulator
  • LM27 - Factory Preset Thermostat
  • LM2700 - Step-up PWM DC/DC Converter
  • LM2702 - TFT Panel Module
  • LM2703 - Micropower Step-up DC/DC Converter
  • LM2704 - Micropower Step-up DC/DC Converter

Full PDF Text Transcription

Click to expand full text
LM2773 Low-Ripple 1.8V/1.6V Spread-Spectrum Switched Capacitor Step-Down Regulator January 22, 2008 LM2773 Low-Ripple 1.8V/1.6V Spread-Spectrum Switched Capacitor Step-Down Regulator General Description The LM2773 is a switched capacitor step-down regulator that produces a selectable 1.8V or 1.6V output. It is capable of supplying loads up to 300mA. The LM2773 operates with an input voltage from 2.5V to 5.5V, accommodating 1-cell Li-Ion batteries and chargers. The LM2773 utilizes a regulated charge pump with gains of 2/3x and 1x. It has very low ripple and noise on both the input and output due to its pre-regulated 1.15MHz (typ.) switching frequency and spread spectrum operation.
