LM331 - Precision Voltage-to-Frequency Converters

Description

The LM131 LM231 LM331 family of voltage-to-frequency converters are ideally suited for use in simple low-cost circuits for analog-to-digital conversion precision frequencyto-voltage conversion long-term integration linear frequency modulation or demodulation and many other functions The output when

Features

  • Y Y Y Y Y Y Y Y Y Y Guaranteed linearity 0 01% max Improved performance in existing voltage-to-frequency conversion.

📥 Download Datasheet

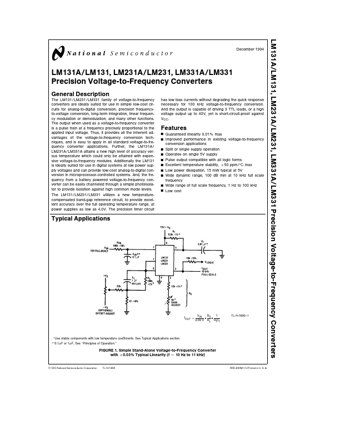

Datasheet preview – LM331

Datasheet Details

Part number LM331
Manufacturer National Semiconductor
File Size 280.01 KB
Description Precision Voltage-to-Frequency Converters
