LM3433

Common Anode Capable High Brightness LED Driver

LM3433 Features

* include thermal shutdown, VCC under-voltage lockout, and logic level shutdown mode. The LM3433 is available in a low profile LLP-24 package. Features

* Operating input voltage range of -9V to -14V w.r.t. LED

* anode Control inputs are re

LM3433 General Description

The LM3433 is an adaptive constant on-time DC/DC buck (step-down) constant current controller (a true current source). The LM3433 provides a constant current for illuminating high power LEDs. The output configuration allows the anodes of multiple LEDs to be tied directly to the ground referenced cha.

LM3433 Datasheet (365.65 KB)

Preview of LM3433 PDF

Datasheet Details

Part number:

LM3433

Manufacturer:

National Semiconductor

File Size:

365.65 KB

Description:

Common anode capable high brightness led driver.
LM3433 Common Anode Capable High Brightness LED Driver with High Frequency Dimming www.DataSheet4U.com November 26, 2007 LM3433 Common Anode Capabl.

📁 Related Datasheet

LM343 High Voltage Operational Amplifier (National Semiconductor)

LM3430 Boost Controller (Texas Instruments)

LM3430 high voltage low-side N-channel MOSFET controller (National Semiconductor)

LM3431 3-Channel Constant Current LED Driver (Texas Instruments)

LM3431 3-Channel Constant Current LED Driver (National Semiconductor)

LM3431A 3-Channel Constant Current LED Driver (National Semiconductor)

LM3431AQ 3-Channel Constant Current LED Driver (National Semiconductor)

LM3431Q 3-Channel Constant Current LED Driver (National Semiconductor)

LM3432 6-Channel Current Regulator (Texas Instruments)

LM3432 6-Channel Current Regulator (National Semiconductor)

TAGS

LM3433 Common Anode Capable High Brightness LED Driver National Semiconductor

Image Gallery

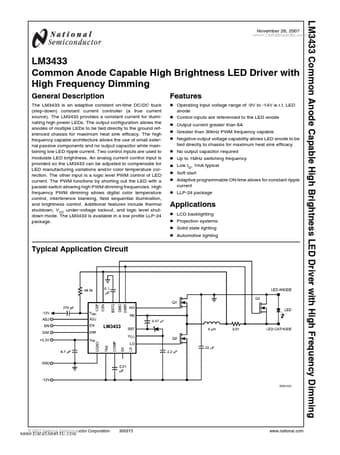

LM3433 Datasheet Preview Page 2 LM3433 Datasheet Preview Page 3
