LM35 - Precision Centigrade Temperature Sensors

Datasheet Summary

Description

The LM35 series are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature.

Features

  • n Calibrated directly in ˚ Celsius (Centigrade) n Linear + 10.0 mV/˚C scale factor n 0.5˚C accuracy guaranteeable (at +25˚C) n Rated for full.
  • 55˚ to +150˚C range n Suitable for remote.

📥 Download Datasheet

Datasheet preview – LM35

Datasheet Details

Part number LM35
Manufacturer National Semiconductor
File Size 299.49 KB
Description Precision Centigrade Temperature Sensors
Datasheet download datasheet LM35 Datasheet

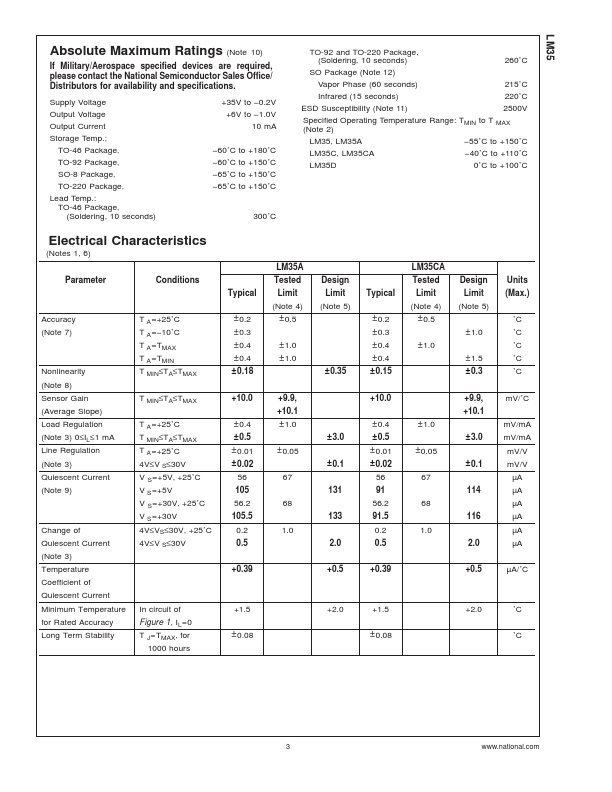

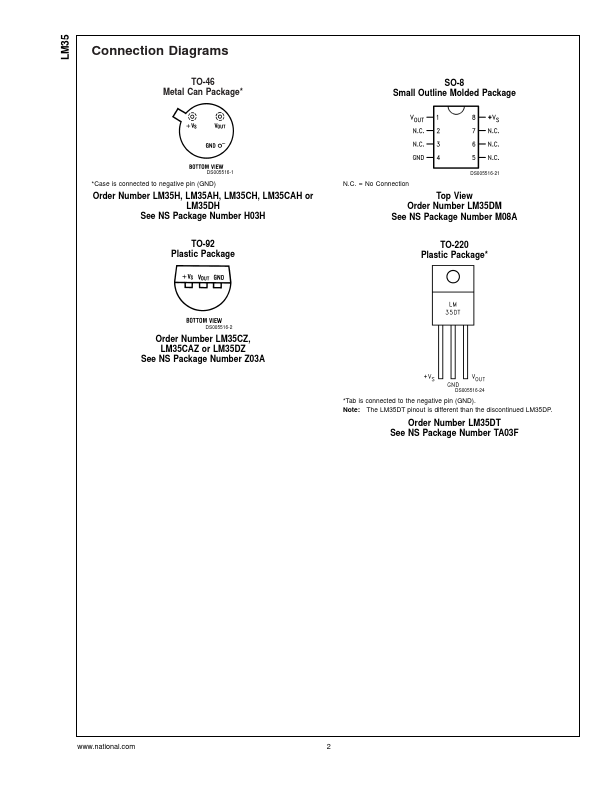

Additional preview pages of the LM35 datasheet.

📁 Similar Datasheet

  • LM35 - Precision Centigrade Temperature Sensor (Texas Instruments)
  • LM350 - Three-terminal Positive Voltage Regulator (Motorola)
  • LM350 - 3-Amp Adjustable Regulator (Texas Instruments)
  • LM350 - 3 Amp Positive Adjustable Regulator (Linear Technology)
  • LM350 - 3A Positive Voltage Regulator (onsemi)
  • LM350 - Three-terminal 3A adjustable voltage regulators (STMicroelectronics)
  • LM350 - 3-Terminal 3A Positive Adjustable Regulator (Fairchild Semiconductor)
  • LM350-N - 3-Amp Adjustable Regulator (Texas Instruments)
  • LM3500 - Synchronous Step-up DC/DC Converter (Texas Instruments)
  • LM3501 - Synchronous Step-up DC/DC Converter (Texas Instruments)
Other Datasheets by National Semiconductor
  • LM350 - 3-Amp Adjustable Regulators
  • LM3501 - Synchronous Step-up DC/DC Converter
  • LM3502 - Step-Up Converter
  • LM3503 - Dual-Display Constant Current LED Driver
  • LM350A - 3-Amp Adjustable Regulators
  • LM351 - Dual Peripheral Drivers
  • LM3519 - High Frequency Boost White LED Driver
  • LM3520 - Integrated White LED Driver

Full PDF Text Transcription

Click to expand full text

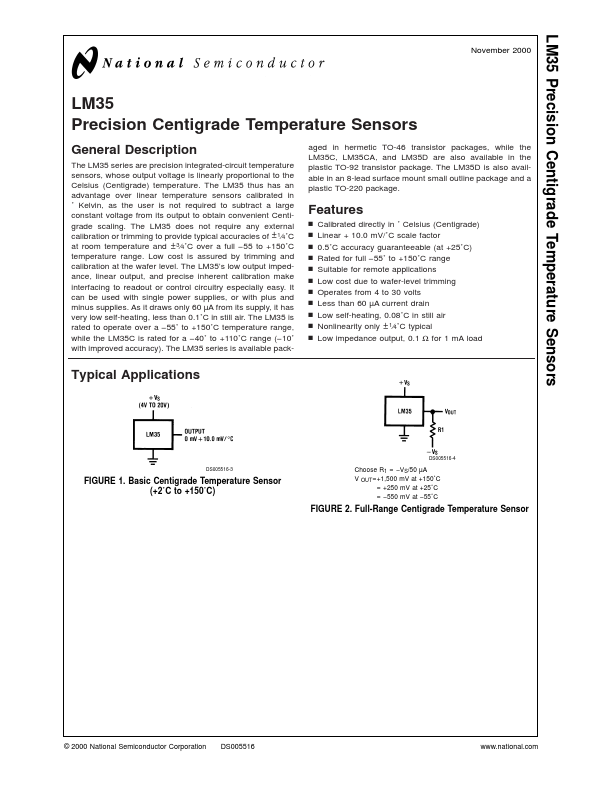

LM35 Precision Centigrade Temperature Sensors November 2000 LM35 Precision Centigrade Temperature Sensors General Description The LM35 series are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature. The LM35 thus has an advantage over linear temperature sensors calibrated in ˚ Kelvin, as the user is not required to subtract a large constant voltage from its output to obtain convenient Centigrade scaling. The LM35 does not require any external calibration or trimming to provide typical accuracies of ±1⁄4˚C at room temperature and ±3⁄4˚C over a full −55 to +150˚C temperature range. Low cost is assured by trimming and calibration at the wafer level.
